FDCSDC5

FDCSDC5

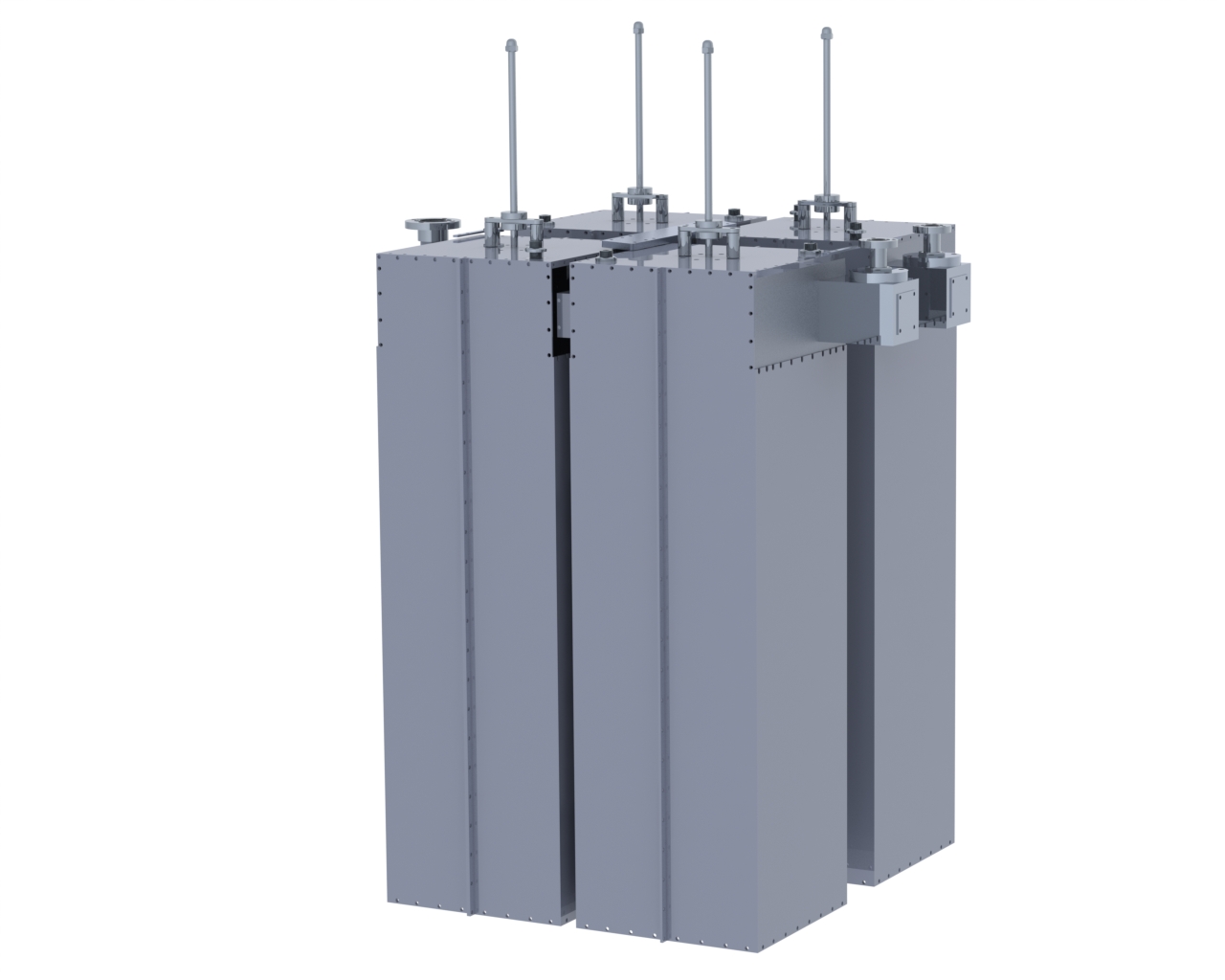

2 Channel Combiner
Star Point Type
FM Band 87.5-108 Mhz

The star point combiner basically consists of connecting several transmitters, in parallel to a single antenna system through suitable bandpass filters, each tuned to each individual transmitter frequency.
The parallel connection is obtained by means of coaxial lines of determined length, to provide for adequate isolation between transmitters.

Model FDCSDC5 – Type STAR POINT
Impedance 50 Ohm
Frequency Range 87.5÷108 MHz
VSWR ±150 KHz 1.1:1 Max
Insertion Loss at ƒ0 0.15 dB Max
Return Loss ±150 KHz ≤ -26 dB
Isolation ±2.0 MHz 30 dB
No. of input 2
No. of output 1
Connectors 1+5/8”Input-Output
Option 3+1/8”
Max Power 5 KW X 2 CHANNELS
Temperature Range -20°C ÷ +50°C
Color Enamel gray ral 7001
Materials Aluminium, silver brass, copper, PTFE, stainless steel,
silver plated (min 12μ thickness)

• Distortion – Free
• Starpoint system with double bandpass cavity filters
• Starpoint system with triple bandpass cavity filters
• Low loss, high isolation
• Natural convection
• Optional group delay equalizer

Dimensions 1400(Max size) x 780 x 810 mm (55.1(Max size) x 30.7 x 31.9 inch) (H x L x W)
Net Weight =~ 90 Kg (double cavity)
