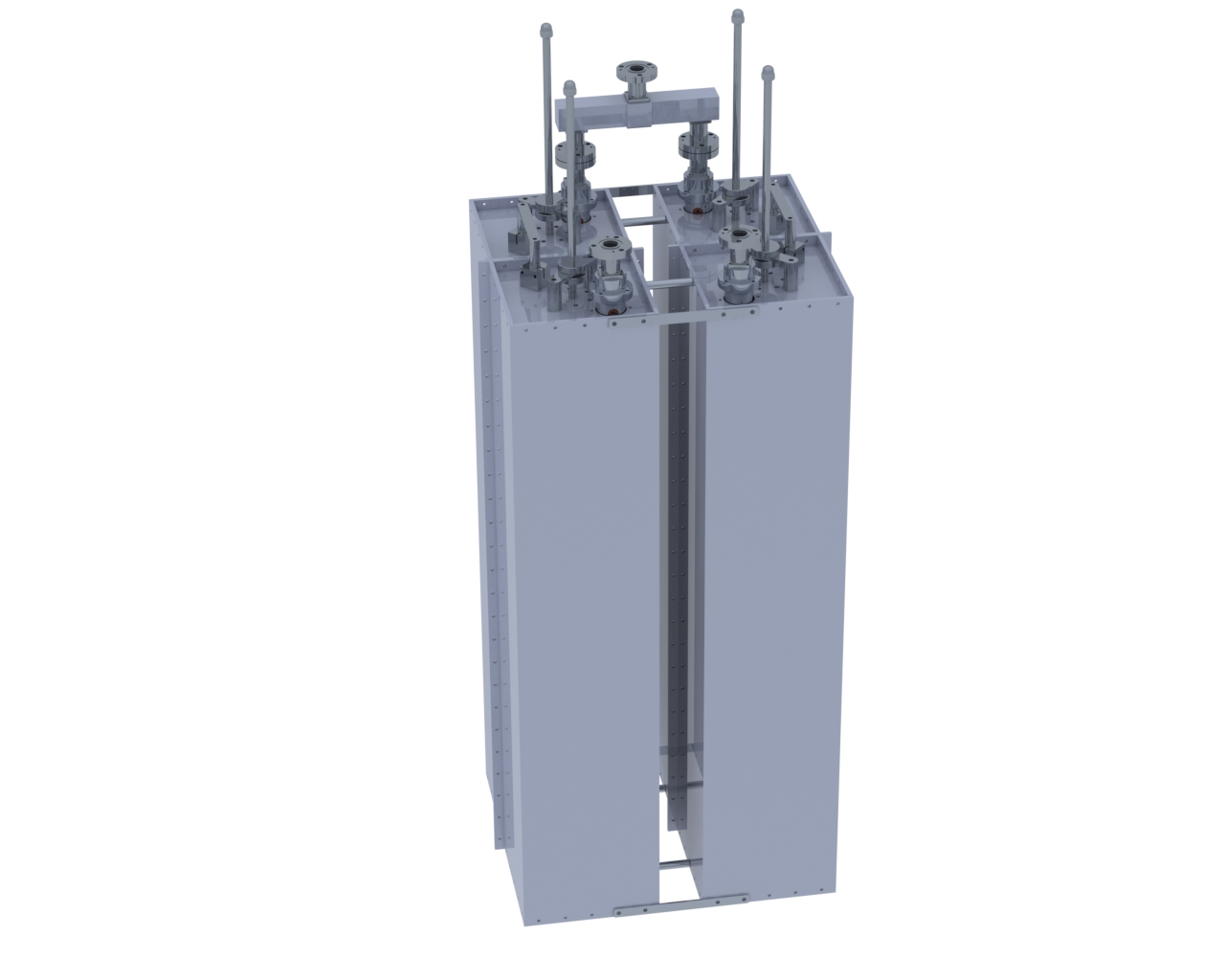

FDCSDC2 Starpoint Combiner
• 2 Channel starpoint combiner, 2 Bandpass filters per channel
• Up to 2000W power input per channel
• Low loss, very rugged, stable tuning over time, compact design
• Conservatively rated, high quality materials & precision crafted parts
• Designed to combine multiple frequencies into a single antenna system and also minimize inter-mods, harmonics or spurious emissions
Specifications
Model FDCSDC2
Number of Channels 2
Max Power input per channel 2000W
Bandpass filters per channel 2
Impedance 50 Ohm
Frequency Range 87.5-108MHz
Insertion Loss -0.25dB to -0.4dB
Return Loss +/- 150kHz ≤-26dB
Isolation +/- 2.5MHz Typical ≤-30dB
Input Connectors 7/8” Flange(7-16 Female on request)
Output Connector 7/8” Flange
Working Temperature -4°F to 122°F
Weight 45kg/99lbs
Dimensions 1300 mm / 51” inches (H) – 485 mm / 19” inches (L) – 400 mm / 15.7” inches (W)
