FDCSDC2R

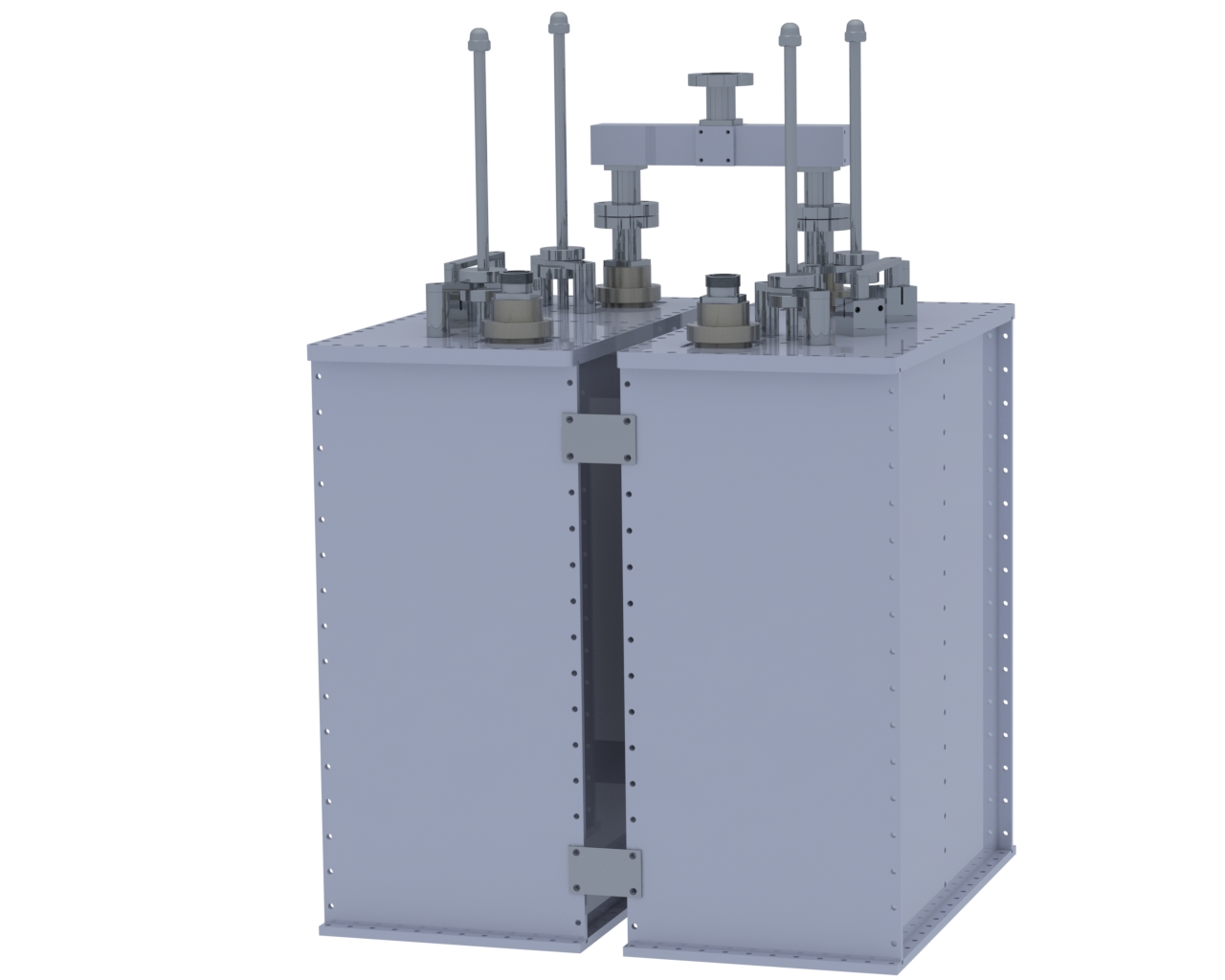

FDCSDC2R Starpoint Combiner

• 2 Channel starpoint combiner, 2 Bandpass filters per channel
• Up to 1500W power input per channel
• Optional 12RU rack mounting kit available
• Low loss, very rugged, stable tuning over time, compact design
• Conservatively rated, high quality materials & precision crafted parts
• Designed to combine multiple frequencies into a single antenna system and also minimize inter-mods, harmonics or spurious emissions

Specifications

Model FDCSDC2R
Number of Channels 2
Max Power input per channel 1500W
Bandpass filters per channel 2
Impedance 50 Ohm
Frequency Range 87.5-108MHz
Insertion Loss -0.25dB to -0.32dB
Return Loss +/- 150kHz ≤-26dB
Isolation +/- 2.5MHz Typical ≤-30dB
Input Connectors 7-16 DIN Female
Output Connector 7/8” Flange
Working Temperature -4°F to 122°F
Weight 42kg/92.5lbs
Dimensions 714 mm / 28” inches (H) – 534 mm / 21” inches (L) – 483 mm / 19” inches (W)
