3 Channel Combiner
Star Point Type
FM Band 87.5-108 Mhz

The star point combiner basically consists of connecting several transmitters, in parallel to a single antenna system through suitable bandpass filters, each tuned to each individual transmitter frequency.
The parallel connection is obtained by means of coaxial lines of determined length, to provide for adequate isolation between transmitters.

Model FTCSTC03 – Type STAR POINT
Impedance 50 Ohm
Frequency Range 87.5÷108 MHz
VSWR ±150 KHz 1.1:1 Max
Insertion Loss at ƒ0 0.8 dB Max
Return Loss ±150 KHz ≤ -26 dB
Isolation ±2.0 MHz 30 dB
No. of input 3
No. of output 1
Connectors Input N female
Output 7/16”(opt. 7/8” EIA)
Max Power 300 W X 3 CHANNELS
Temperature Range -20°C ÷ +50°C
Color Enamel gray ral 7001
Materials Aluminium, silver brass, copper, PTFE, s

• Distortion – Free
• Distortion – Free
• Starpoint system with triple bandpass cavity filters
• Starpoint system with pass stop
• Low loss, high isolation
• Natural convection
• Optional group delay equalizer

No Rack Version

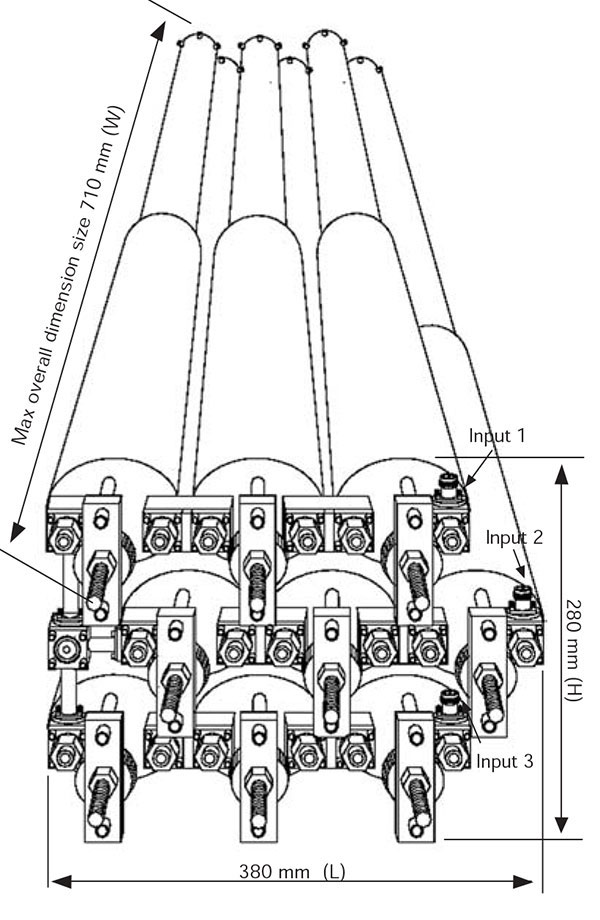

Dimensions 280 x 380 x 710 mm (12 x 15 x 28 inches) (HxLxW)
Net Weight =~ 27 Kg (triple cavity)
Rack Version (optional)
Panel Size 7 HE (1 HE = 44.45 mm)
Net Weight =~ 27 Kg (triple cavity)
