FFC14

FFC14

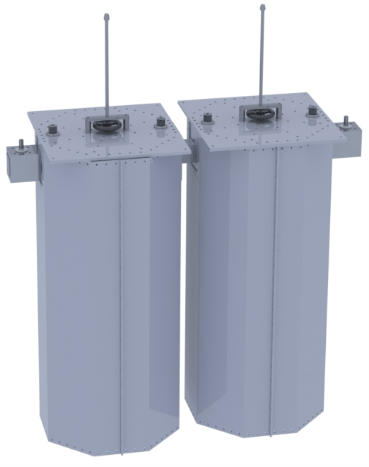

Band-Pass Filter
FM Band 87.5-108 MHz

• Up to 14kW, dual cavity RF Filter for FM Radio Stations, 87.5-108MHz

• Low loss, very rugged, stable tuning over time

• Compact design with minimal space required

• Conservatively rated, high quality materials & precision crafted parts

• Designed to minimize inter-mods, harmonics or spurious emissions

Model FFC14

Max Power 14kW

Impedance 50 Ohm

Frequency Range 87.5-108MHz

Insertion Loss -0.10dB to -0.22dBMax

Return Loss +/- 150kHz ≤-26dB

Rejection +/- 3MHz Typical ≤-30dB

Connectors 3-1/8” Flange Input/Output

Working Temperature -4°F to 122°F

Weight 60 kg / 132 lbs

Dimensions 1500mm / 59” inches (H) – 1100mm / 43” inches (L) – 500mm / 20” inches (W)
