FFTC40

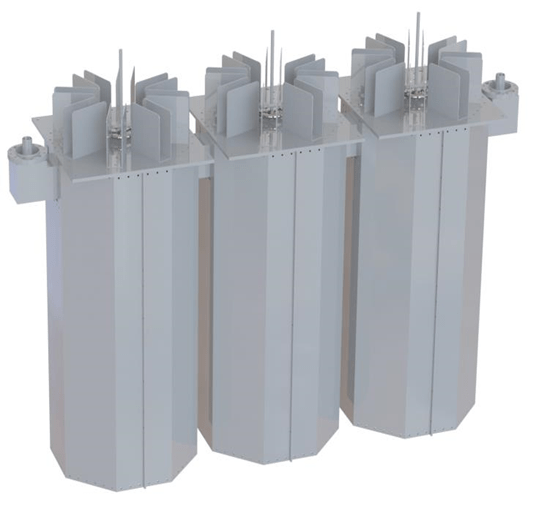

FFTC40 Band Pass filter

• Up to 40kW, triple cavity RF Filter for FM Radio Stations, 87.5-108MHz
• Low loss, very rugged, stable tuning over time
• Compact design with minimal space required
• Conservatively rated, high quality materials & precision crafted parts
• Designed to minimize inter-mods, harmonics or spurious emissions

Specifications

Model FFTC40
Max Power 40kW
Impedance 50 Ohm
Frequency Range 87.5-108MHz
Insertion Loss -0.15 to -0.26dB
Return Loss +/- 150kHz ≤-26dB
Rejection +/- 1.5MHz Typical ≤-30dB
Connectors 4-1/2” Flange Input/Output
Working Temperature -4°F to 122°F
Weight 90kg / 198.5lbs
Dimensions 1350mm / 53” inches (H) – 1870mm / 73.6” inches (L) – 490mm / 19” inches (W)

• Up to 40kW, triple cavity RF Filter for FM Radio Stations, 87.5-108MHz

• Low loss, very rugged, stable tuning over time

• Compact design with minimal space required

• Conservatively rated, high quality materials & precision crafted parts

• Designed to minimize inter-mods, harmonics or spurious emissions

Model FFTC40

Max Power 40kW

Impedance 50 Ohm

Frequency Range 87.5-108MHz

Insertion Loss -0.15 to -0.26dB

Return Loss +/- 150kHz ≤-26dB

Rejection +/- 1.5MHz Typical ≤-30dB

Connectors 4-1/2” Flange Input/Output

Working Temperature -4°F to 122°F

Weight 90kg / 198.5lbs

Dimensions 1350mm / 53” inches (H) – 1870mm / 73.6” inches (L) – 490mm / 19” inches (W)
